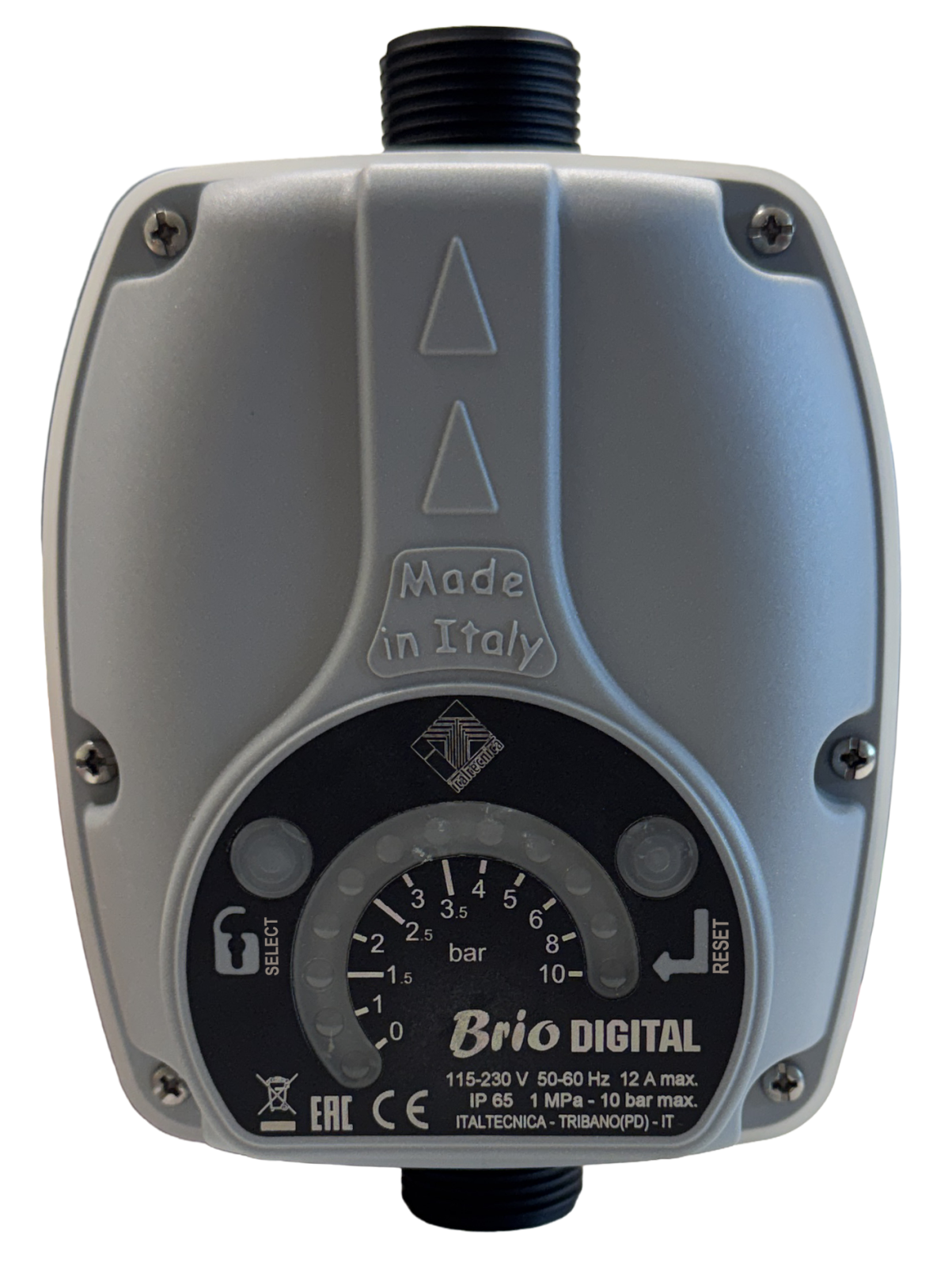

Pressure and flow controller BRIO DIGITAL

• Automatically controls the start of the electric pump when pressure drops (tap opening) and its stop when the fluid flow interrupts at the maximum pressure level of the electric pump (taps closing).
• The device represents the evolution of the traditional pressure booster system with mechanical pressure switch.
• Automatic reset with up to 10 attempts, providing a total coverage time of 7 hours and 15 minutes.
• 24-hour anti-seizure protection.
• Dry-run protection.
• Digital adjustment of the start pressure from 1 to 5 bar.
• Installation in any position, either vertical or horizontal.
• Digital pressure indication via LED scale.
• Inspectable check valve.
• Pressure loss: 1.2 bar at 150 l/min.
• Minimum flow rate: approximately 3 l/min
