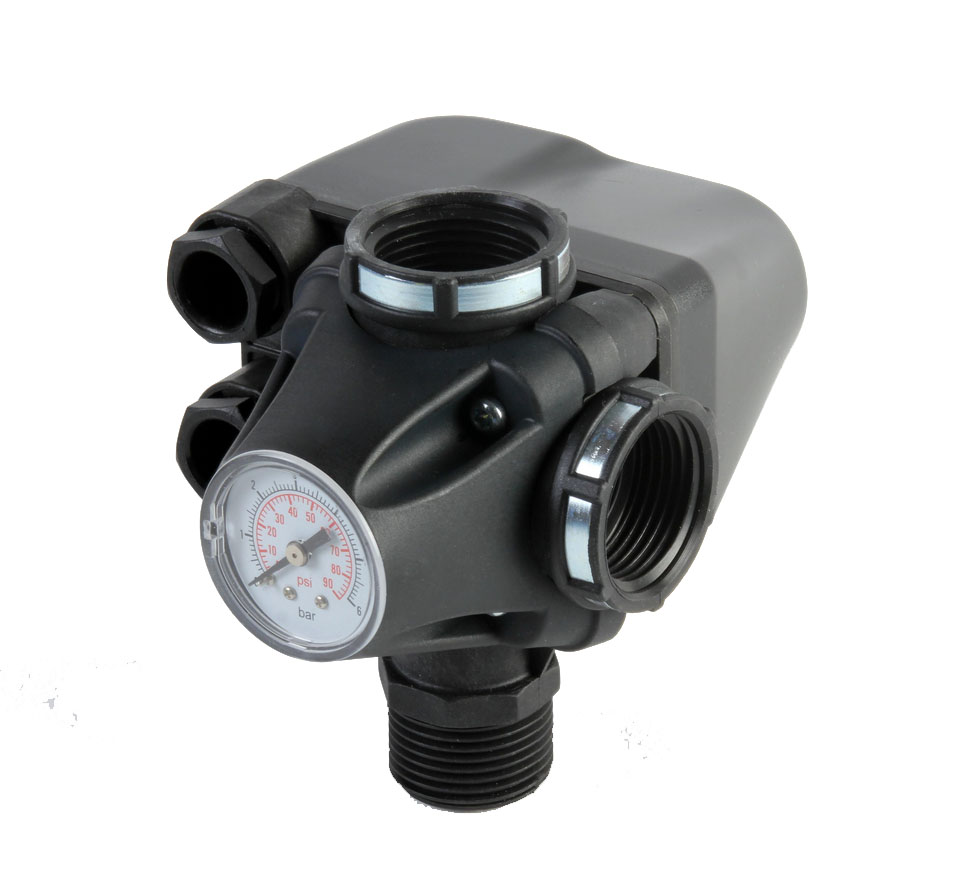

Mechanical pressure switches PM5-3W

Pressure switch for water pumps with integrated pressure gauge and 3 way fitting

  • Easy and fast connection to the pump and to the pressure tank
  • Robust plastic fitting replacing common brass fitting
  • Integrated pressure gauge
  • Packing by 30 pcs (box 54x52x33cm), with cables by 30 pcs (box 43x55x33cm)
Load: 250V - 16(10)A
Max. pressure: 5 bar
Connections: PM/5-3W: GAS 1“ Mx1“ Fx1F“
PM/5-2W: GAS 1“ Fx 1/2“ M
Pressure Gauge: Ø 40 mm 0-6 bar / 0-86 PSI
Max. ambient temperature: 55 °C
  • ELYONDAROHS
  • Restricel InsulationCE
PM/5-3W

PM/5-3W

PM/5-2W

PM/5-2W

Electrical cables for motor and line connection

Electrical cables for motor and line connection

Version with electrical cables for motor and line connection

Customized settings

Customized settings

Customized settings

Special springs for not standard adjustment ranges

Special springs for not standard adjustment ranges

Special springs for not standard adjustment ranges

Graduated scale

Graduated scale

Graduated scale on the device for an easy adjustment of ther cut-in pressure

Transparent cover

Transparent cover

Transparent cover

Cover with on/off button

Cover with on/off button

Cover with on/off button

Protection degree IP54

Protection degree IP54

Blind cable clamps

Blind cable clamps

One of the two cable clamps can be supplied blind

Revolving nut fitting 1" F

Revolving nut fitting 1" F

Revolving nut fitting 1" F

Reinforced electric contacts up to 20A current

Reinforced electric contacts up to 20A current
