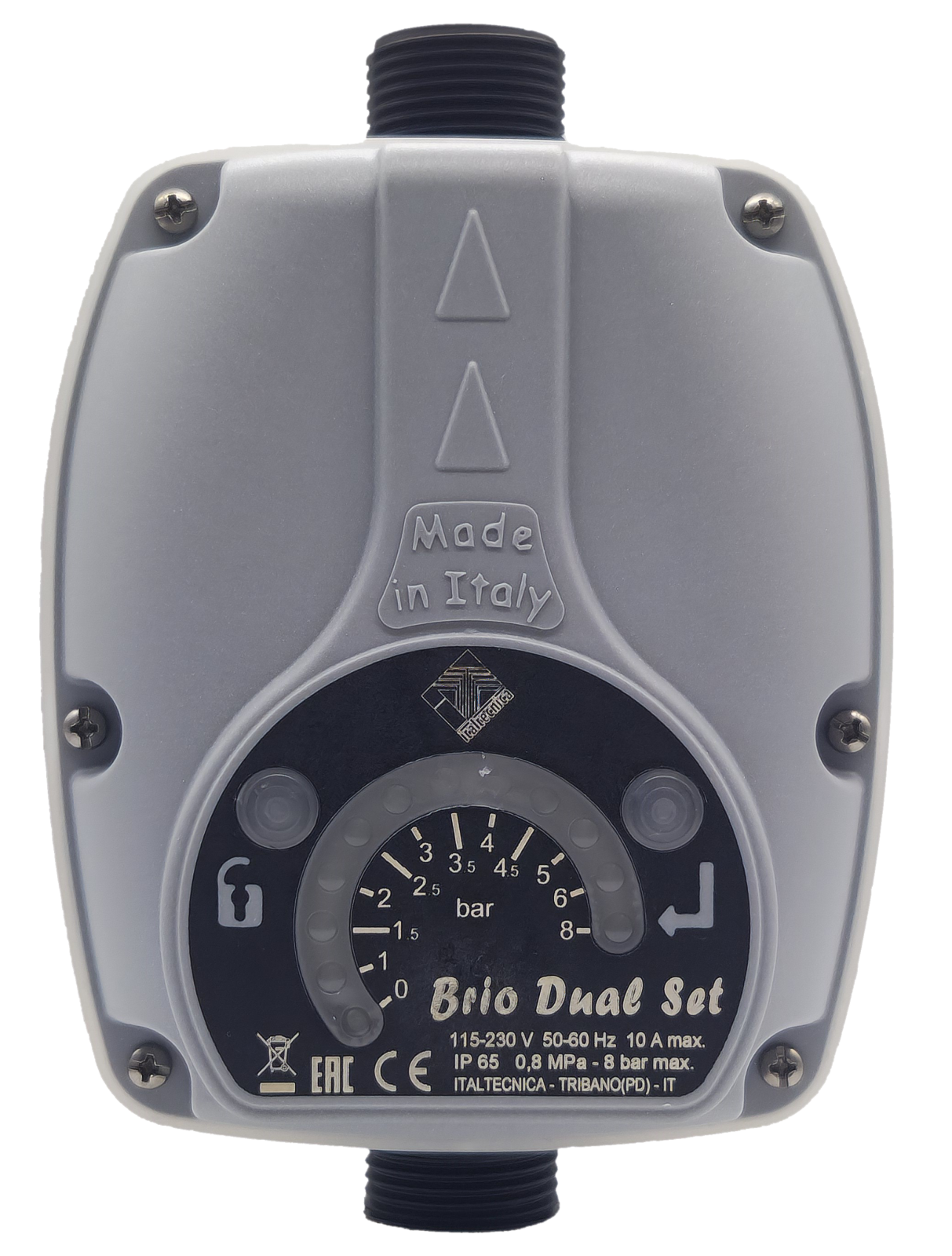

AccessoriesDigital pressure switch BRIO DUAL SET
Electronic device for electric pump control
- The digital pressure switch that simplifies the management of your pump.
- Double setting: set both the minimum and maximum pressure from 1 to 6 bar with a simple button!
- Integrated 3-way connection that allows direct installation with the pressure tank.
- Automatically controls the start and stop of the electric pump based on adjustable pressure values.
- Digital pressure indication via LED scale.
- Minimum and maximum pressure adjustable from 1 to 6 bar within defined pressure ranges.
- Integrates: pressure switch, pressure gauge, 3-way connection, and an inspectable non-return valve.
- Starts the electric pump when pressure drops (tap opening) and stops it when liquid flow ceases at the pump’s maximum pressure (tap closing).
- Dry-running protection.
- Integrated automatic reset: after shutdown due to lack of water, it attempts to restart at predefined time intervals, for a total of 10 attempts (7h 15min).
- Anti-block pump: after 24 hours of inactivity, the pump runs for 10 seconds to prevent rotor blockage.
- Intelligent protection in case the stop pressure is not reached.
- Maximum start protection: in case of continuous starts and stops due to loss of pre-charge pressure in the pressure tank, the device stops the pump after exceeding 30 starts per minute.
| Power supply: | 115-230 V |
| Max current el pump: | 10A |
| Factory setting: | 1,5 bar min - 3 bar max |
| Max pressure: | 8 bar |
| Protection degree: | IP 65 |
