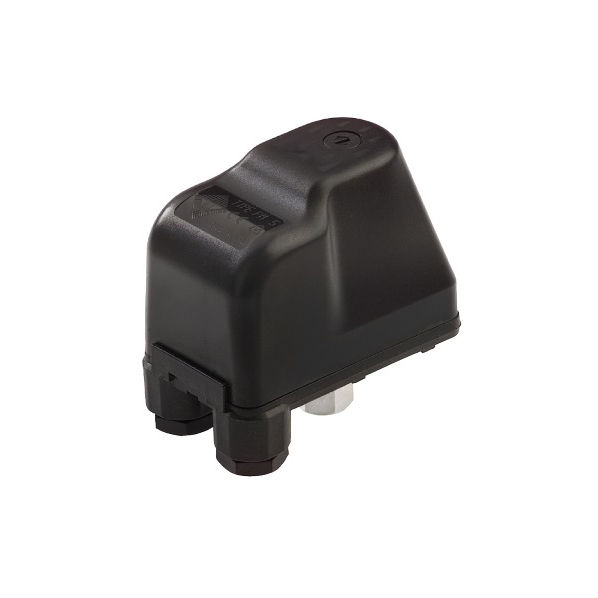

Mechanical pressure switches PM/PT

Pressure switches for water system applications PM/5 - PT/5 PM/6 - PT/6 PM/12 - PT/12

  • Terminals with M4 screws and 8x8 mm pressure dice
  • NBR rubber membrane with textile insert (food grade for PM/5 - PM/6 - PT/5)
  • ¼" F hydraulic connection made of galvanized steel
  • Standard protection degree IP 44
  • Max ambient temperature: 55°C
  • Tear resistant cable clamps

APPLICATIONS: Pressure switches for firefighting systems, Pressure switches for water pumps

  • Packing by100 pcs (box 43x55x33cm), with cables by 50 pcs
 PM/5PM/6PM/12PT/5PT/6PT/12
Pressure range: 1-5 bar 1,5-5,5
bar
3-12 bar 1-5 bar 1,5-5,5
bar
3-12 bar
Factory setting: 1,4-2,8
bar
1,8-3 bar 5-7 bar 1,4-2,8
bar
1,8-3 bar 5-7 bar
Min differential: 0,6 bar 0,8 bar 1,5 bar 0,6 bar 0,8 bar 1,5 bar
Max differential: 2,3 bar 2,2 bar 5 bar 2,3 bar 2,2 bar 5 bar
Rated current: 16A (10)A 16A (10)A 16A (10)A 16A (10)A 16A (10)A 16A (10)A
Rated voltage: 250V 250V 250V 500V 500V 500V
  • ELYONDAROHS
  • Restricel InsulationCE
Seeting diagram - PM12/PT12

Seeting diagram - PM12/PT12

Contacts arrangment - PT

Contacts arrangment - PT

Seeting diagram - PM5/PT5

Seeting diagram - PM5/PT5

Seeting diagram - PM6/PT6

Seeting diagram - PM6/PT6

Dimensions

Dimensions

Contacts arrangment - PM

Contacts arrangment - PM

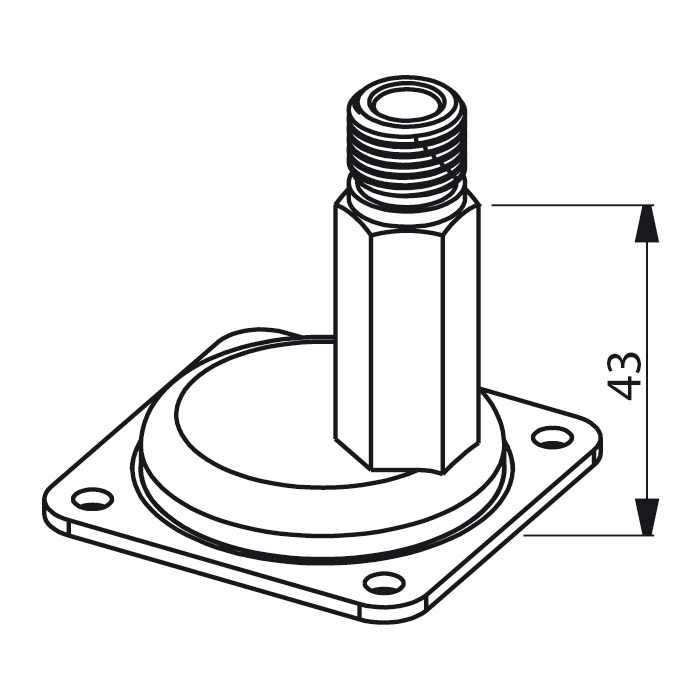

1/4" M GAS

Male

1/4" ML GAS

Long male

1/4" MF GAS

Long male

1/4" L GAS

Side male

1/4" F GAS

Female

1/4" FL GAS

Long female

1/4" FG GAS

Female revolving nut

1/4" 4V

GAS Female - 4 ways

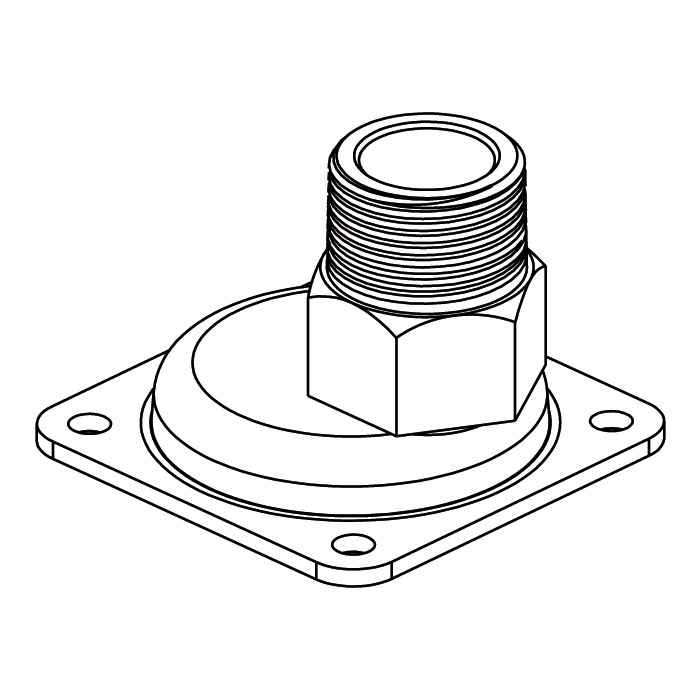

1/2" M GAS

Male

1/2" F GAS

Female

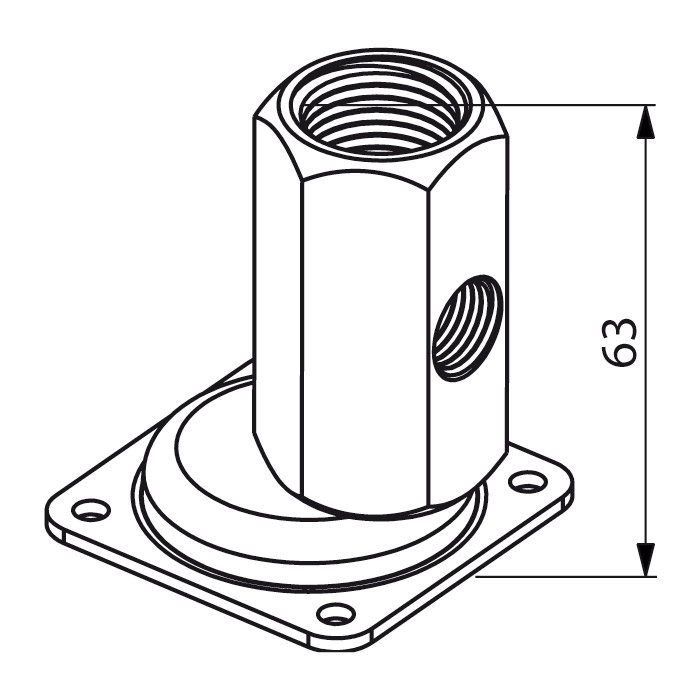

1/2" 2V

1 way ½” + 1 way ¼” female

3/8" FG GAS

Female revolving nut

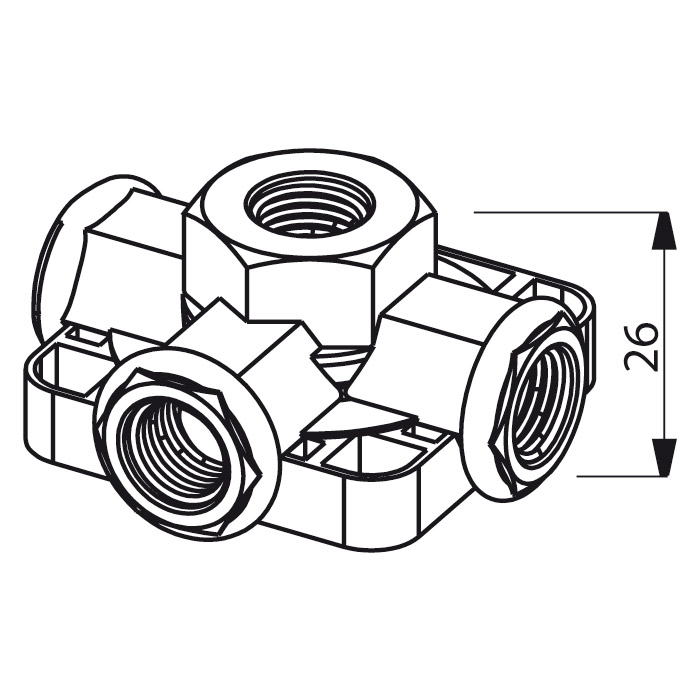

3/8" 4V

3 ways ¼” + 1 way 3⁄8” female

Electrical cables for motor and line connection

Electrical cables for motor and line connection

Version with electrical cables for motor and line connection

Customized settings

Customized settings

Customized settings

Special springs for not standard adjustment ranges

Special springs for not standard adjustment ranges

Special springs for not standard adjustment ranges

Graduated scale

Graduated scale

Graduated scale on the device for an easy adjustment of ther cut-in pressure

Transparent cover

Transparent cover

Transparent cover

Cover with on/off button

Cover with on/off button

Cover with on/off button

Protection degree IP54

Protection degree IP54

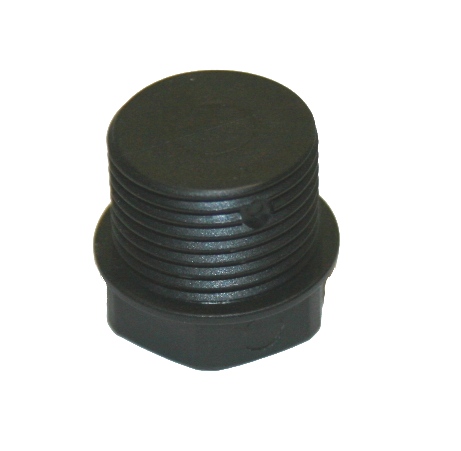

Blind cable clamps

Blind cable clamps

One of the two cable clamps can be supplied blind

Reinforced electric contacts up to 20A current

Reinforced electric contacts up to 20A current
