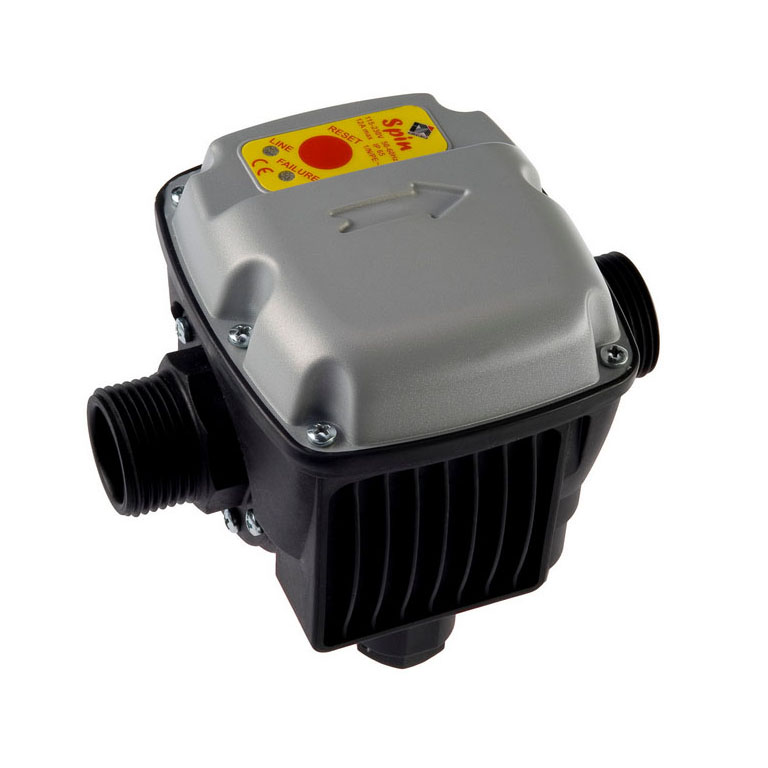

Flow switches SPIN

Electronic flow switch

  • Ideal for use in booster sets in series with the traditional pressure switch, or in any other application requiring protection against operation when there is no water
  • Pump shutdown delay settable internally from 10 to 180 seconds to enable filling of expansion tanks of various capacities
  • It protects against the dry running
  • Available with SCHUKO socket or pre-fitted electric cables
  • Standard 1" M hydraulic connections
  • Installation in any position - both vertical and horizontal - according to the fl ow direction
  • Automatic reset after each shutdown of the electric pump; standard interval 60 min/4 attempts
  • Easily replaceable electronic printed circuit board
  • No need of maintenance

APPLICATIONS:

  • Electronic flow and pressure devices
  • Dry running protection
  • Packing by 32 pcs (box 54x52x33cm)
Power supply: 115-230Vac ±10% 50/60Hz
Max rated currant:  12A
Max allawable pressure:  10 bar
Min flow rate: 2,4 l/min
Protection degree: IP44
IP65 - without plug
Max fluid temperature: 50°C
Max ambient temperature: 50°C
  • ELYONDAROHS
  • Restricel InsulationCE
Dimensions

Dimensions

Dimensions

Dimensions

Dimensions

Dimensions

Filling-up and emptying out function

Filling-up and emptying out function

Installation on booster-sets

Installation on booster-sets

1" M-M

1" male-male

1" G-M

1" revolving female inlet-male outlet

1" M-G

1" male inlet-revolving female inlet

1" G-G

1" revolving female inlet-revolving female inlet

Electrical cables for motor and line connection

Electrical cables for motor and line connection

Version with electrical cables for motor and line connection

Revolving nut fitting 1" F

Revolving nut fitting 1" F

Revolving nut fitting 1" F

Electronic printed circuit board with conformal coating

Electronic printed circuit board with conformal coating

1" Plastic Elbow 90°

1" Plastic Elbow 90°

T plastic fitting

T plastic fitting

Schuko socket and plug

Schuko socket and plug

Version with drilled check valve for water column drain

Version with drilled check valve for water column drain
