AccessoriesFloat switches
- Check the level with clean water, dirty water and not aggressive liquid

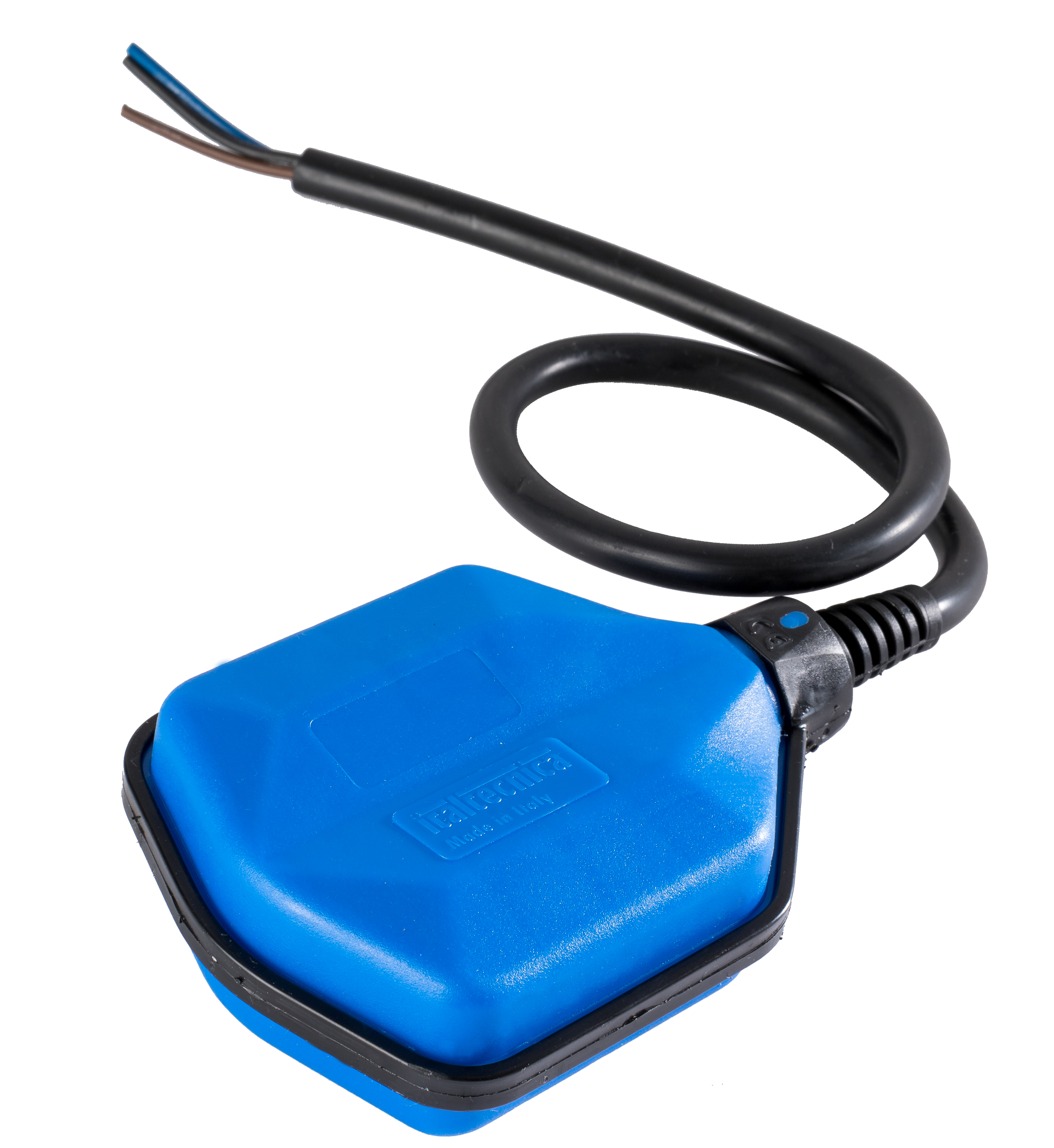

TECNO
| Cabel | Function |
Lenght |
| PVC 3x1 | For filling-up and emptying out according to the connection | 0,5-50 m |
| A07RN-F 3x1 | For filling-up and emptying out according to the connection | |
| H07RN-F 3x1 | Individual functions emptying (On request: filling) |
Counterweight: on request
Microswitch Eletrical ratings: 10(8)A 250V~
Working temperature: 0-50°C
Protection: IP 68
TITANIO
| Cabel | Use | Lenght |
|
PVC 3x1
H07RN-F 3x1 |
Liquids control in drainage systems, pumping systems and dirty(black) waters. Protection against moisure infiltration |
3-50 m |
Eletrical characteristics: 10(4)A 250V
Working temperature: 0-50°C
Protection: IP 68
Pressure resistence: 10 bar
