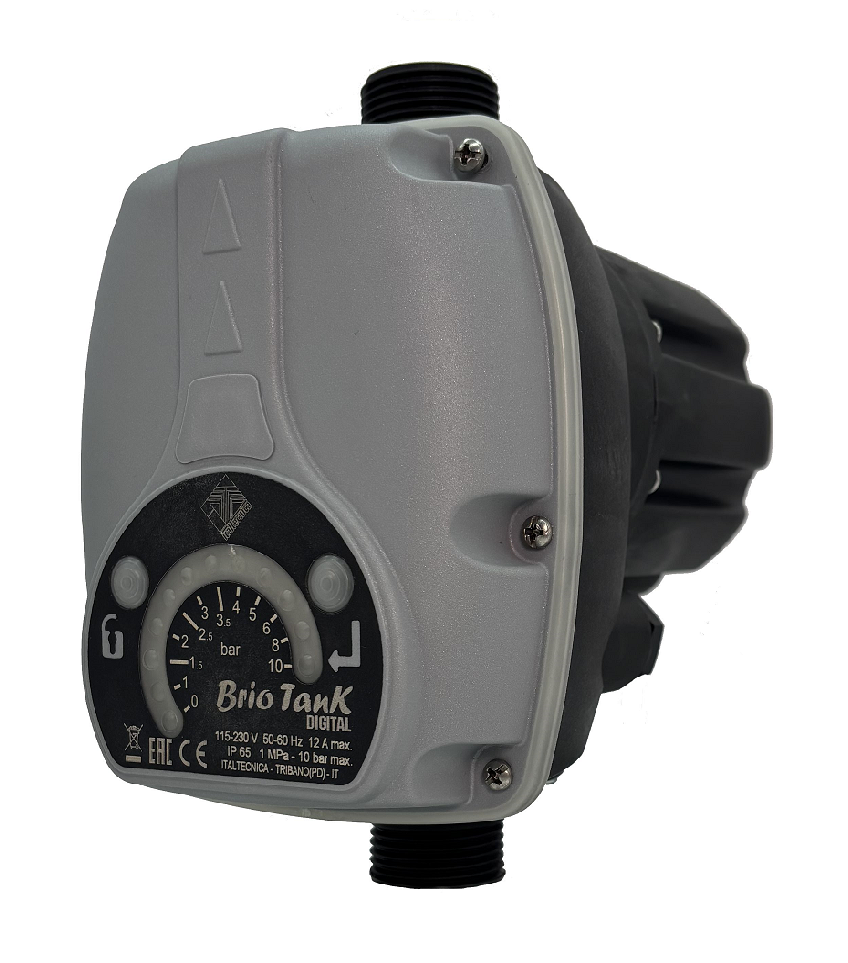

AccessoriesPressure and flow controllers BRIO TANK DIGITAL
Electronic device for electric pump control
- Smart technology: a touch to adjust the pressure and a led to display its value
- This is the new Brio Tank Digital
- It automatizes the start of the electric pump after a pressure decrease (taps opening) and its stop when the fluid flow interrupts at the maximum pressure level of the electric pump (taps closing)
- lt completely replaces the traditional water system with pressure switch and pressure tank
- A small 0,4 It water tank is integrated and it prevents frequent start and stop of the pump in case of small request of water and in case of leakages on the installation
- Replaceable BUTYL membrane of the pressure tank
- Adjustable pre-charge pressure (factory setting 1,5 bar) of the pressure tank
- Reading of the system pressure by LED
- Protection against dry running and water hammering
- Adjustable starting pressure from 1 to 4 Bar with 0,5 Bar intervals
- lnstallation in any position - both vertical and horizontal
- Automatic reset up to 10 attempts
- 24h hour anti-block protection
- lnspectionable check valve
- Pressure drops: 1,2 bar at 150 Lt/min
