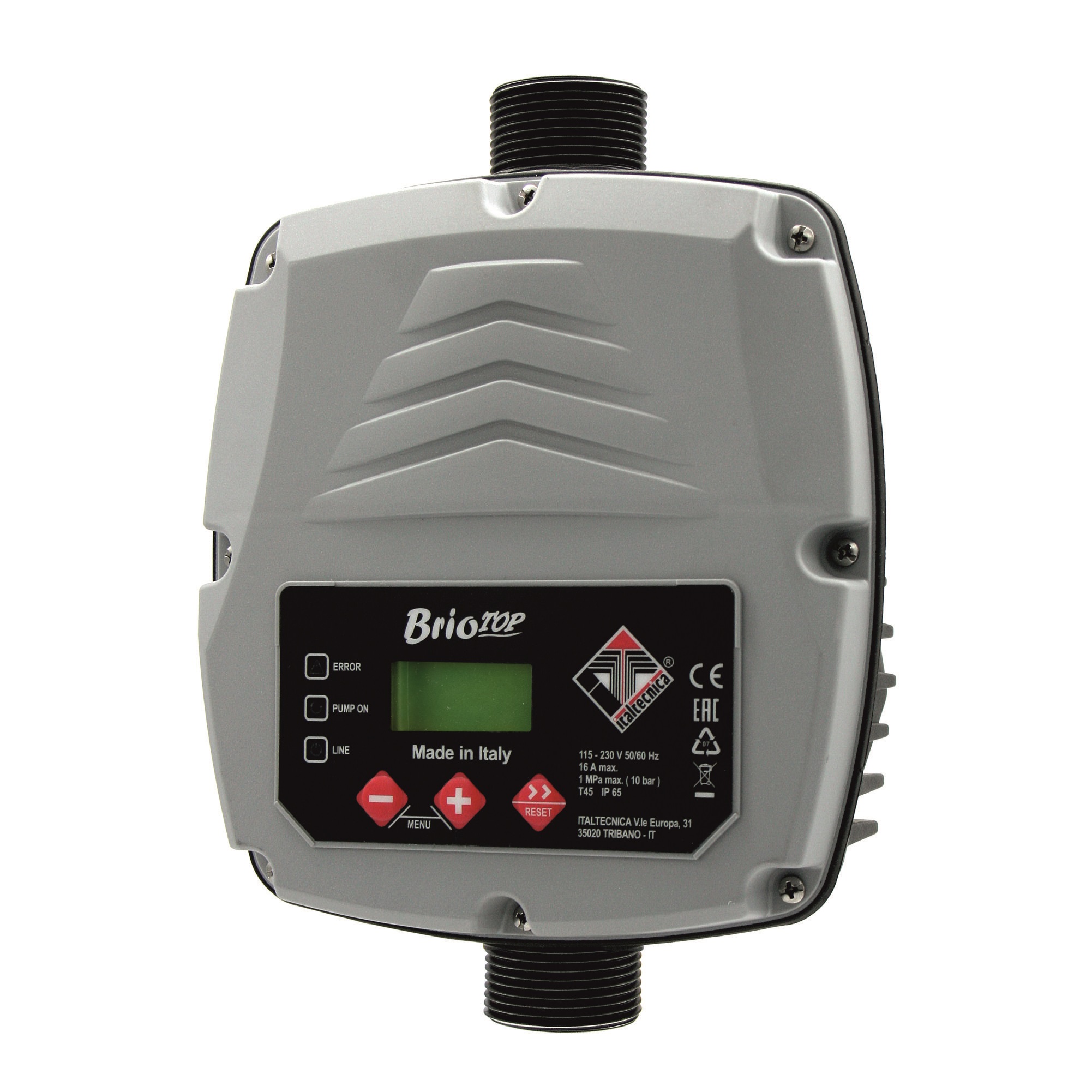

Pressure and flow controllers BRIO TOP 2.0

Electronic digital device for electric pumps

  • Suitable for water pumping system with pressure tank as digital pressure switch, or as flow and pressure controller
  • Intarnal compartment dedicated to pump capacitor.
  • Available with 1" or 1 1/4" connection
  • Pressure values adjustable via digital display
  • Pressure values and motor current showed on the display
  • Automatic control of the start and stop functions of single phase electric pumps (surface, vertical and submersible) up to 16A (3HP)
  • Protection against dry running
  • Automatic reset in event of dry running.
  • Motor over current control which trips in the event of overload or with the blocked rotor
  • Anti-freeze protection which starts up the pump when the ambient temperature falls below 4°C
  • Rotor anti-blocking function used to prevent seizure of mechanical parts during prolonged periods of pump inactivity.
  • Overpressure protection able to stop the electric pump at a set threshold.
  • Installation in any position -both vertical and horizontal.
  • Operation in master/slave configuration into twin booster sets.
  • Terminals for remote connection (1 input + 1 output)
  • Alarm log for simple analysis of any system malfunction
  • Severe leak protection(starts check per hour 15-30-60)
  • Multilingual display with 16 characters

Power supply: 115-230Vac ±15% 50/60Hz
Max rated currant: 16A
Starting pressure range( P+F mode) 0,5-8bar
Pressure Range ( P+P mode) 0,8-9bar
Max allawable pressure: 10bar
Protection degree: IP 65
Fluid temperature: 5oC - 45oC
Ambient temperature: 5OC - 45oC
Hydraulic connections: 1''M , 1''1/4M
