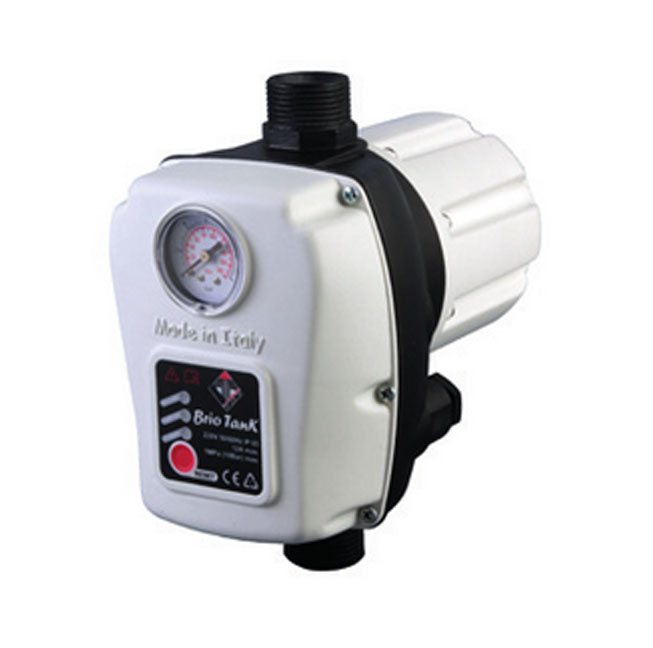

Pressure and flow controllers BRIO TANK

Electronic device for electric pump control

It automatizes the start and stop operations of single-phase electric pumps up to 2HP
It replaces completely the traditional water system set up consisting on pressure switch and pressure tank
It starts the electric pump after a pressure decrease (taps opening) and stops it when the fluid flow interrupts at the maximum pressure level of the electric pump (taps closing)

A small 0,4 l water tank is integrated and itprevents unlikely frequent start and stop of the pump in case of small request of water and in case of leakages on the installation
Replaceable butyl membrane of the pressure tank
Adjustable pre-charge pressure (factory setting 1,5 bar) of the pressure tank
Integrated pressure gauge
It protects against the dry running and water hammering
Starting pressure is adjustable during installation
Standard 1" M hydraulic connections
Installation in any position - both vertical and horizontal - according to the flow direction
Electronic printed circuit board housed in a waterproof compartment protecting against water condensation
No need of maintenance
Automatic reset after a stop caused by dry running, standard time-interval 60min/4 tests.
Inspectionable check valve.

APPLICATIONS: Electronic flow and pressure devices, Dry running protection

Power supply:	230Vac ± 15% 50/60Hz
Max rated current:	12 A (2Hp) 1500W
Starting pressure range:	1÷3,5 bar (1,5 standard)
Max allowable pressure:	10 bar
Gross volume of pressure tank:	0,4l
Fluid temperature:	5^oC -35^oC
Ambinet temperature:	5^o C - 45 °C
Hydraulic connections:	1” M
Protection degree:	IP 65
